Description

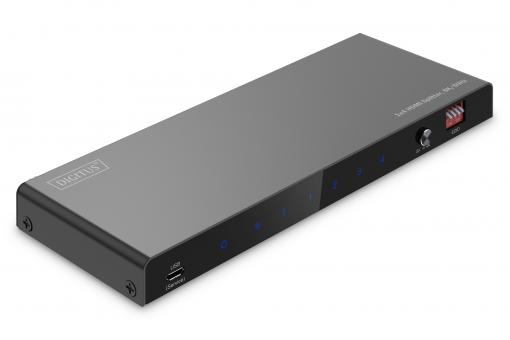

The HDMI splitter from DIGITUS® distributes/mirrors audio and video signals from your HDMI device to 4 TVs, monitors or projectors in a resolution of UHD 8K/60Hz. Audio signals can also be decoupled via Toslink or 3.5 mm stereo connection and played back separately. The EDID switch can be used to make settings to match the connected displays.
Technical details
- Distributes an HDMI signal to 4 TVs/monitors/projectors
- Audio extractor: Toslink / stereo (3.5 mm) - decoupling and separate playback of the audio signal
- EDID switch / management
- Max. Resolution: 8K/60Hz (4:4:4)
- Video bandwidth: 48 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.3
- Supports Deep Color (36 bit)
- HDMI 2.1
- Connections:
- 1x HDMI input (8K/60Hz)
- 4x HDMI output (8K/60Hz)
- 1x Toslink
- 1x 3.5 mm audio
- 1x DC / 5V input - power supply connection
- 5x status LEDs
- 1x EDID switch
- 1x Micro USB input - Service
- Operating temperature: 0-70°
- Power consumption: approx. 7W
- Housing: Metal
- Dimensions (housing): L 18.8 x W 7.1 x H 1.8 cm
- Weight: 285 g
- Color: black
- HDTV Resolution max.: 7680 × 4320 Pixel, 60Hz
- HDTV Standard: Ultra HD 8K
- Number of ports: 4
- Signal input: HDMI
- Signal output: HDMI
- Video connection ports: HDMI
Package content
- 1x HDMI splitter
- 1x power supply unit (5V/2A, 1.2 m)
- 1x QIG
Downloads and Certificates
Datasheet
Driver
Logistics
| Number (pcs) | Weight (kg) | Depth (cm) | Width (cm) | Height (cm) | cm³ | |
|---|---|---|---|---|---|---|
| Packaging Unit Carton | 20 | 12,40 | 39,50 | 30,50 | 44,00 | 53.009,00 |
| Packaging Unit Inside | 1 | 0,62 | 0,00 | 0,00 | 0,00 | 0 |
| Packaging Unit Single | 1 | 0,62 | 20,70 | 18,70 | 5,60 | 2.167,70 |
Customs tariff number:
8543709099
