Description

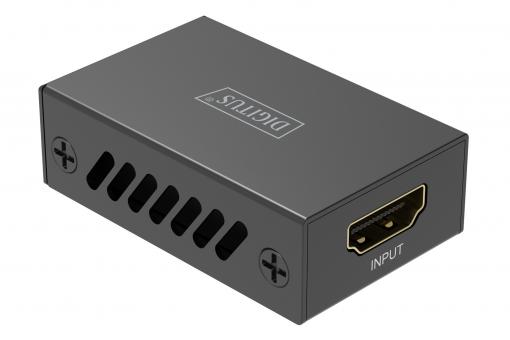

The DIGITUS® 8K HDMI Repeater extends signals in 8K/60Hz (4:4:4) up to 10 m. 4K/60Hz (4:4:4) can be extended to up to 13 m. Two corresponding HDMI cables can be cascaded with the repeater. Thanks to its special design, the repeater is also supplied with power via HDMI (5V). Optionally, you can supply the repeater with power via USB-C if this is required by your setup.
Technical details
- Extends HDMI signals up to 10 m in 8K/60Hz - 5 m input (HDMI cable) + 5 m output (HDMI cable)
- Extends HDMI signals up to 13 m in 4K/60Hz - 8 m input (HDMI cable) + 5 m output (HDMI cable)
- Power supply via HDMI cable (signal source) thanks to special self-powered design
- Optional (additional) power supply with enclosed USB-C cable if the setup requires
- Max. resolution: 8K/60Hz (4:4:4)
- Video bandwidth: 48 Gbps
- HDMI 2.1
- Supports HDCP 2.3
- Supports Deep Color (36-bit)
- Ultra-slim design
- Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.)
- Connections:
- 1x HDMI input (8K/60Hz)
- 1x HDMI output (8K/60Hz)
- 1x USB-C input (DC 5V) - Optional power supply
- Operating temperature: 0-70°
- Power consumption: approx. 1W
- Housing: Metal
- Dimensions (housing): L 5.0 x W 3.1 x H 1.5 cm
- Weight: 40 g
- Color: black
- HDTV Resolution max.: 7680 × 4320 Pixel, 60Hz
- HDTV Standard: Ultra HD 8K
- KVM: no
- PoE (Power over Ethernet): no
- Video connection ports: HDMI
Package content
- 1x HDMI repeater
- 1x USB-C cable (1.0 m)
- 1x QIG
Logistics
| Number (pcs) | Weight (kg) | Depth (cm) | Width (cm) | Height (cm) | cm³ | |
|---|---|---|---|---|---|---|
| Packaging Unit Carton | 250 | 21,80 | 39,50 | 30,50 | 44,00 | 53.009,00 |
| Packaging Unit Inside | 1 | 0,09 | 0,00 | 0,00 | 0,00 | 0 |
| Packaging Unit Single | 1 | 0,09 | 10,00 | 8,50 | 2,00 | 170,00 |
Customs tariff number:
8517620000
