Firewire 800 (1394b) PCIe Card

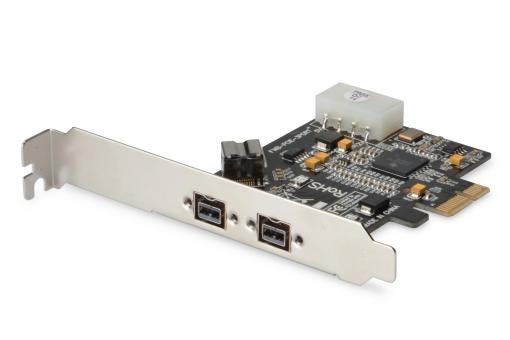

DIGITUS Firewire 800 (1394b) PCIe Card

Manufacturer part no.: DS-30203-2
EAN: 4016032322405

IEEE 1394b PCIexpress Add-On card 3-port, 2x9-Pin Extern+1x9-Pin Intern, XIO2213B

Extend your system by additional Firewire ports!

  • 3x FireWire 800 (1394b) ports: 2x 9-pin extern + 1x 9-pin intern
  • Data transfer rates of 100, 200, 400, and 800Mbps
  • Built-in 4-pin power connector, provides extra power when connected to the system power supply (recommended)

Inquire now

Description

IEEE 1394b PCIexpress Add-On card,3-port, 2x9-Pin Extern+1x9-Pin Intern, XIO2213B

Technical details

  • 3x FireWire 800 (1394b) ports: 2x 9-pin extern + 1x 9-pin intern
  • Chipset: XIO2213B
  • Data transfer rates of 100, 200, 400, and 800Mbps
  • Built-in 4-pin power connector, provides extra power when connected to the system power supply (recommended)
  • Supports hot-swapping and Plug & play connections
  • Works with various types of FireWire 800 (1394b) devices, including external hard disk drives, DV camcorders, digital cameras, CD-RW/DVD-ROM drives, and other audio/video devices
  • Operating temperature: 0 °C - 70 °C
  • Operating humidity: 25% - 65% RH (non-condensing)
  • Supports Windows 10, 8, 7, Vista and XP

Package content

  • PCIe, FireWire 800 interface card, 2/1-ports
  • Low profile bracket
  • Manual

Downloads and Certificates

Datasheet

Manual

Logistics

  Number
(pcs) 		Weight
(kg) 		Depth
(cm) 		Width
(cm) 		Height
(cm) 		cm³
Packaging Unit Carton 40 6,00 41,00 41,00 38,00 63.878,00
Packaging Unit Inside 1 0,15 8,00 12,00 1,90 182,40
Packaging Unit Single 1 0,15 8,00 12,00 1,90 182,40
Customs tariff number: 8471800000

Safety notes

  • Switch off the computer completely and disconnect it from the power supply before installing or removing the network card.
  • Static discharge can damage the product or the PC. Take measures against static discharge (ESD) when installing the product, e.g. wear an antistatic wrist strap.
  • Before installation, touch the metal surface of the PC housing or another grounded object to ground any ESD charge via the housing.
  • Avoid using too much force when connecting the product to the PC.
  • Please ensure that any cables are connected correctly without overstretching or damaging them.
  • Avoid touching the contacts of the product with your fingers to prevent corrosion or static charge.
