8K HDMI Ultra High Speed Connection Cable

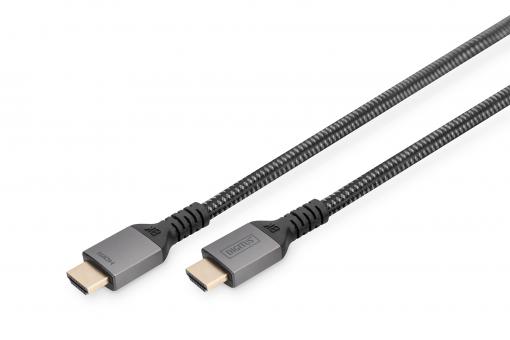

DIGITUS 8K HDMI Ultra High Speed Connection Cable

Manufacturer part no.: DB-330200-020-S
EAN: 4016032481218

HDMI Ultra Premium High Speed Connection Cable, A M/M, 2.0m, Alu Housing, UHD, 8K@60Hz, gold, bl

The Digitus 8K Ultra High Speed Connection Cable already meets the requirements for future high-definition devices (TV, projector, monitor) of the next generation with higher resolutions, higher data rates and higher refresh rates.

  • HDMI plug to HDMI plug
  • Enables the ultimate 8K experience with Ultra-HD-2 resolutions of up to 7,680 x 4,320 pixels (supported with HDR) and high speed with a refresh rate of 60 Hz (4K with 120 Hz)
  • 3D signal transfer combined with Dolby TrueHD support enables a one-of-a-kind home cinema experience, perfect for Netflix, Disney+, Sky, Amazon Prime Video or DAZN
  • The cable supports ARC (Audio Return Channel) for bidirectional audio transfer, and CEC (Consumer Electronic Control)
  • The digital encryption system HDCP protects the transmission of audio and video files against external influences - Lip Sync delivers perfect lip synchronization, delayed audio output is a thing of the past
  • The gold-plated precision plugs provide optimal signal quality and corrosion protection
  • With aluminum housing and nylon mesh, the cable offers optimal quality and protection.

Inquire now

Description

With this cable standard, the ultra high speed HDMI cable supports all current requirements – from the transmission of high-resolution UHD 8K content, two-way audio transmission (ARC) and control of HDMI devices via CEC. Internet applications can also be used without the additional need to connect an Ethernet cable (HEC). Lip Sync means that delayed lip movement is a thing of the past. This cable can also be used to transmit up to 32 audio channels and enjoy image output in 21:9 CinemaScope format. Get more out of your Blu-ray player, gaming console or HD streaming portal. Gold-plated contacts and triple shielding of the cable ensure maximum conductivity and interference-free transmission. Also supports 4K 3D in 50/60 Hz.

Technical details

  • Resolution: 7680 x 4320p / 60 Hz (UHD-2)
  • Supports 8K 3D
  • Signal transmission rate up to 48 Gbps - Zero frame delay
  • Supports up to 120Hz at 4K & Full HD (1080p)
  • Supports BT.2020 with 10, 12 and 16 bits per color component
  • Subsampling: YUV 4:4:4
  • HDCP version: 2.2
  • HDMI version: 2.1
  • Supported color depth: 48 Bit Deep Color
  • Supports HDR
  • Supports enhanced Audio Return Channel (eARC)
  • Supports Consumer Electronic Control (CEC)
  • Supports Lip-Snyc (audio/video synchronization)
  • Multi stream audio/video support
  • Supports EDID 2.0 (device detection)
  • 21:9 Cinemascope support
  • 32 channel audio support
  • Dolby TrueHD capable
  • Supports 8-channel LPCM, 192 kHz, 24-bit audio capability
  • Supports DTS-HD master audio bitstream
  • Supports Super Audio CD (DSD)
  • Supports DVD-Audio
  • Supports Blu-Ray Disc and HD-DVD audio and video
  • Operating temperature: -20 ~60°C
  • Operating humidity: 0 - 95% RH
  • Power consumption: 400 mW max.
  • Supports DVI version 1.0 (in conjunction with adapters)
  • Hood: Aluminum housing
  • Color cable: black
  • Connector 1: HDMI type A, plug
  • Connector 2: HDMI type A, plug
  • Connector surface: gold-plated
  • Ferrite filter: none
  • HDMI Standard: Ultra High Speed HDMI
  • HDTV Resolution max.: 7680 × 4320 Pixel, 60Hz
  • HDTV Standard: Ultra HD 8K
  • Length: 2 m
  • AOC - Active Optical Cable: no

Package content

  • 1x 8K HDMI Ultra High Speed Connection Cable (2m)

Downloads and Certificates

Datasheet

Logistics

  Number
(pcs) 		Weight
(kg) 		Depth
(cm) 		Width
(cm) 		Height
(cm) 		cm³
Packaging Unit Carton 40 5,30 33,00 49,00 31,00 50.127,00
Packaging Unit Inside 1 0,13 0,00 0,00 0,00 0
Packaging Unit Single 1 0,13 16,00 16,00 3,00 768,00
Customs tariff number: 8544429090
